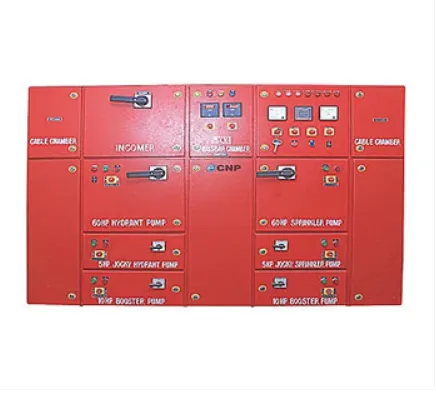

M.S. Powder coated, Fire Red Color Powder Coated, Top/Bottom Entry with IP55/IP65 protection as per requirementPanel standard Gauge thickness 14/16 SWG

Major Applications:

1. Fire Fighting In Industrial And Commercial and Residential Application

2. Water Supply In Fixed Fire Proof System

3. Water Supply In Municipal Work

4. Water Supply In Industrial And Mining Enterprises

5. Water Treatment System

Key Features:

1. MAIN INCOMER control is provided with :

 a. R, Y, B Phase Indication Lamp Provision Digital or Analogue Type Ammeter and Voltmeter

2- Main Hydrant /Sprinkler /Jockey /Booster control is provided with :

 a. Star Delta /D.O.L. starter with Auto – Manual options with single phase preventer Relay.

3- Diesel Engine control parameters are covered as follows :

 a. Auto – Manual option.

 b. LLOP –Low Level Oil Indication, Engine RPM speed, Engine overheating.

 c. Remote start, stop, inputs/commands from remote push button stations. If any one of the fault occurs, the corresponding LED starts flashing and same output is generated on output terminals for remote indications, and it also gives to hooter relay for audio alarm.

 d. Hooter is provided on control panel for audio alarm. Input faults can be selected at site.
